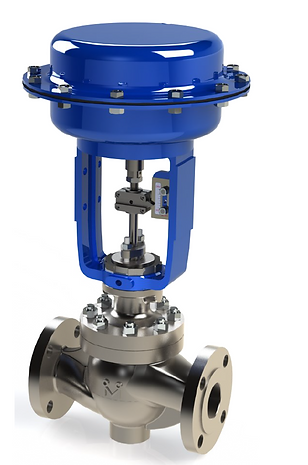

Series 07 Globe Control Valve
The Series 07 Globe Control Valve is engineered to deliver precision, durability, and cost-effectiveness in industrial flow control applications. Designed with modular construction and advanced trim options, this valve ensures reliable performance in demanding environments such as oil & gas, power generation, petrochemical, and water treatment industries.
Key Features
-
Versatile Design – Modular construction with multiple body styles and connection types (RF, FF, SW, BW, RTJ).
-
Ease of Maintenance – All trim components removable from the top for fast servicing.
-
High Performance – Optimized Cv-to-body size ratio and excellent flow control rangeability.
-
Flexible Trim Options – Balanced, unbalanced, anti-cavitation, low-noise, and special trims.
-
Wide Temperature & Pressure Range – Available for ANSI 150–2500, DIN/BS PN10–PN420, and JIS 10K–63K.
-
Material Options – Available in A216 WCB, A351 CF8/CF8M, A351 CF3/CF3M, Hastelloy, Monel, Alloy 20, and more.
-
Bonnet Types – Standard, extension, cryogenic, and bellows seal to meet different fluid and temperature conditions.
-
International Standards – Designed to ANSI B16.34 and ASME Sec VIII, manufactured under ISO 9001 quality system.
Specifications
-
Sizes: ½” to 36” (15mm to 900mm)
-
Pressure Rating: ANSI 150# to 2500# (JIS 10K to 63K, PN 10 to 420)
-
Seat Type: Metal or soft seat
-
Plug Characteristics: Equal percentage, linear, modified parabolic, quick opening
-
Packing: Graphite, carbon fiber, or PTFE
-
Gasket: Spiral wound metal gasket
-
Actuation Options: Pneumatic diaphragm, electric, electro-hydraulic, or hydraulic
Application
The Series 07 Globe Valve is suitable for:
-
Flow regulation of gases, steam, and liquids
-
Noise and cavitation control in high-pressure systems
-
Industrial automation requiring accurate throttling control
